Japan Engine JMC 4x2 Reefer Vans Freezer Box Truck JX1041TGC23 J EURO 5

Brand Name : JMC

Place of Origin : Hubei

Packaging Details : Nude packing,RO-RO ship,bulk ship,or by land for inland country

Supply Ability : 500 Set/Sets per Month

Price : CN¥133,767.95/sets >=1 sets

Model : JX1041TGC23 J

Transmission Type : Manual

Condition : New

Horsepower : < 150hp

Emission Standard : EURO 5

Fuel Type : Diesel

Dimensions (L x W x H) (mm) : 5995 * 1930 * 2900

Box Dimensions (L x W x H) (mm) : 4150 * 1750 * 1720

Temperature Range : -18 °C

Gross Vehicle Weight : 4495

After-sales Service Provided : Video technical support, Return and Replacement, Online support

Maximum Torque(Nm) : 1500-2000Nm

Capacity (Load) : 1-10T

Engine Capacity : < 4L

color : white/blue

Chassis Brand : DongFeng.FAW.Foton.Sino.JAC.I-VECO.Shacman

Drive type : 4x2 LHD

Loading capacity : 1000kg-50000kg

Refrigeration unit : International Top Brand

Van Material : FRP(Fiber Reinforced Plastics)

Refrigerant : HFC R404a

Warranty : 12 Months

Usage : Frozen Meat Icecream Transport

Drive cabin : Single Row Cab

Port : shanghai

Contact Now

Product Description

The refrigerated trucks series mainly used for long-distance transportation of fruit, fish, meat, vegetables and other perishable goods, also it has refrigeration, heating and insulation these three functions.

Weight parameter	Rated load (kg)	1895	Overall dimension (mm)	5955×1880×2750
	Curb weight (kg)	2470	Box dimension (mm)	4210×1760×1730
	Actual max.load capacity(kg)	4000-5000	Wheel base (mm)	3360
Engine	Model	JX493ZLQ3A	Description of engine	4 cylinders,in line,turbocharged,water-cooled, intercooled
	Max.power(kw/hp)	75/102	Fuel type	Diesel
Performance	Max. vehicle speed (km/h)	100	Running angle(°)	Approach angle	27
	F/R overhang(mm)	1015/1580		Departure angle	15.3
	Emission standard	Euro-III	Drive type	4X2
Description of gearbox	JC528T6, 5 forward gears, 1 reverse gear		Steering type	LHD
Clutch	Diaphragm spring clutch		Brake system	Hydraulic brake system
Specification of tire	7.00-16		Number of tires	6+1
Frame	Stamping riveted structure		Number of leaf spring	7/4+5
Cab	Single row, 3 passengers allowable

Envelope material	75mm Interior and exterior fiberglass interlayer insulation material for polyurethane foam, envelope thickness of 75mm . .

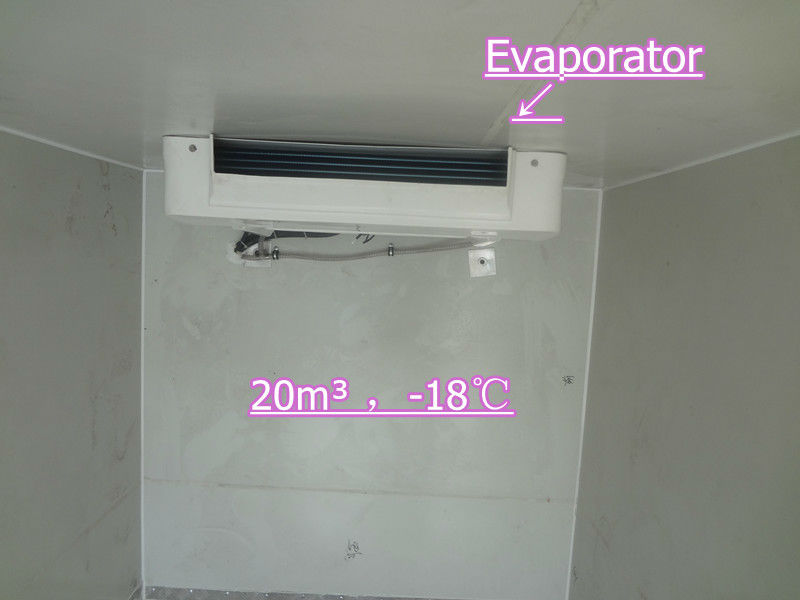

Refrigeration units	With the United States Thermo King, the KV300-10 refrigeration of non-independent units, the lowest temperature of -18 °C.
Multi-temperature settings	Envelope may be the installation of the side door, folder repeat it at different temperature zones; car free configuration: fixtures such as cargo, cargo suspension, compartment shelves, insulation curtain, ventilation ducts; compartment back door hardware are made of stainless steel products. luxury and beauty. (Note: more installation costs another accounting)

Other

Side door is for optional.

Side, rear protective material: Q235, connection: bolt connection.

Rear protective section size: 40mm×180mm.

The rear defense support height from the ground: 450mm.

You can choose equivalent power refrigeration unit of other manufacturers.

Japan Engine JMC 4x2 Reefer Vans Freezer Box Truck JX1041TGC23 J EURO 5

Packaging & Shipping

Japan Engine JMC 4x2 Reefer Vans Freezer Box Truck JX1041TGC23 J EURO 5

Japan Engine JMC 4x2 Reefer Vans

Freezer Box Truck JX1041TGC23

EURO 5 Freezer Box Truck

Japan Engine JMC 4x2 Reefer Vans Freezer Box Truck JX1041TGC23 J EURO 5 Images
