Condition : New
Steering : Left
Emission Standard : Euro 3
Brand Name : Dongfeng
Place of Origin : Hubei, China
Segement : Medium-sized truck
Market Segement : Logistics transportation
Engine Brand : Cummins
Fuel Type : Diesel
Engine Capacity : 4 - 6L
Cylinders : 6
Horsepower : 150 - 250hp
Gear Box Brand : FAST
Transmission Type : Manual
Forward Shift Number : 6
Maximum Torque(Nm) : 1000-1500Nm
Size : 7650,7760*2470*2893,2740
Cargo Tank Dimension : 5000X2350X600
Cargo Tank length : 4.2-5.3m
Cargo Tank Type : Fence
Gross Vehicle Weight : 16050
Capacity (Load) : 1 - 10t
Drive Wheel : 4x4
Passengers : 5
Driver's Seat : Normal
Seat Rows : Double row
Rear Camera : None
ABS(Antilock Braking System) : None
ESC(Electronic Stability Control System) : None
Touch Screen : None
Window : Manual
Air Conditioner : Manual
Tire Number : 6
After-sales Service Provided : Video technical support, Overseas Call Centers, Return and Replacement, Online support
Transmission : 5-speed
Horse power : 190hp
Drive type : 6x6 6 Wheels
Certificate : ISO CCC
Loading capacity : 1-10tons
Engine model : B180-33 /B190-33
Warranty : 12 Months Guarantee
Color : Customer's Request
Packaging Details : Export package/nude packing
Port : Shanghai/Erlianhot
Supply Ability : 500 Set/Sets per Month
Price : CN¥36,153.50-155,460.05/sets
China Factory DONGFENG 4X2 truck cargo box accessories
Chassis | Chassis model | EQ1108KJ | ||
| Tire type | 9.00-20 | ||
| Brake system | Air brake | ||
| Steering system | Power steering,LHD | ||
Engine | Model | YC4D130 33 | ||
| Horsepower (kw/Hp) | 96/130 | ||
| Displacement(ml) | 4214 | ||
| Emission standard | Euro 3 | ||
| Description | In-line,4 cylinders,turbo charged,water cooled,inter cooled,diesel engine | ||
Gearbox | Description | Manual,5 forward &1 reverse gears | ||
Cabin | Description | Classic one and half rows,standard configuration,with single sleeper,3 passengers allowable.A/C optional (+200USD) | ||
Main parameter | Dimension | Overall dimension | 7175x2500x2795mm | |
|
| Wheelbase | 3950mm | |
|
| Cargo box | 4800x2300x400mm | |
|
| Thickness | Side 1.5mm, bottom 3mm | |
| Weight | Curb weight | 5620Kg | |
|
| Load weight | 6450Kg | |
| Leaf spring No. | 9/11+8 | ||
| Approaching/Departure angle(°) | 28/17 | ||
| Front/Rear suspension(mm) | 1250/2750 | ||
| Front/Rear track(mm) | 1870/1800 | ||
| Max speed(km/h) | 90 | ||
| Front/Rear axle load (kg) | 3600/8000 |
![]() |

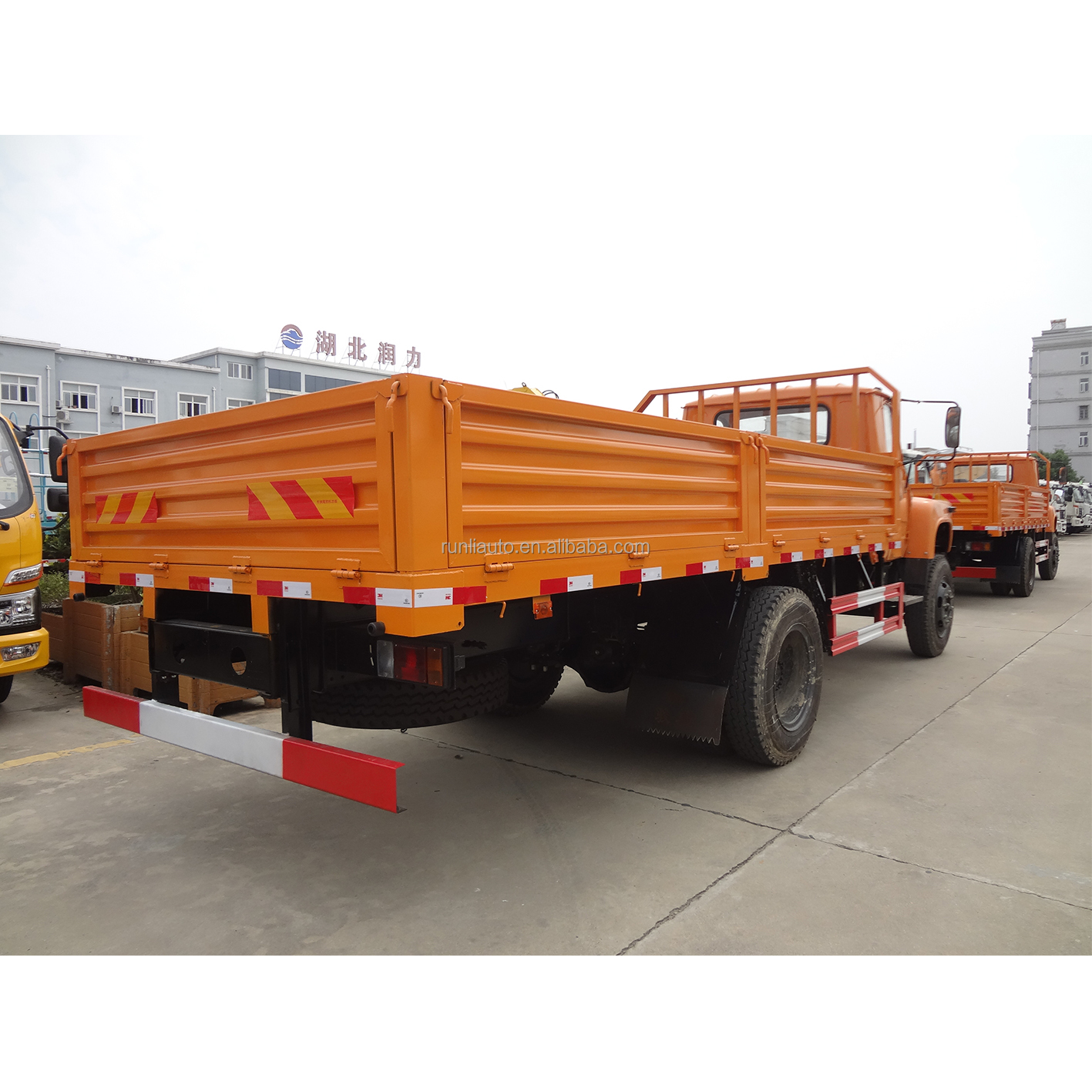

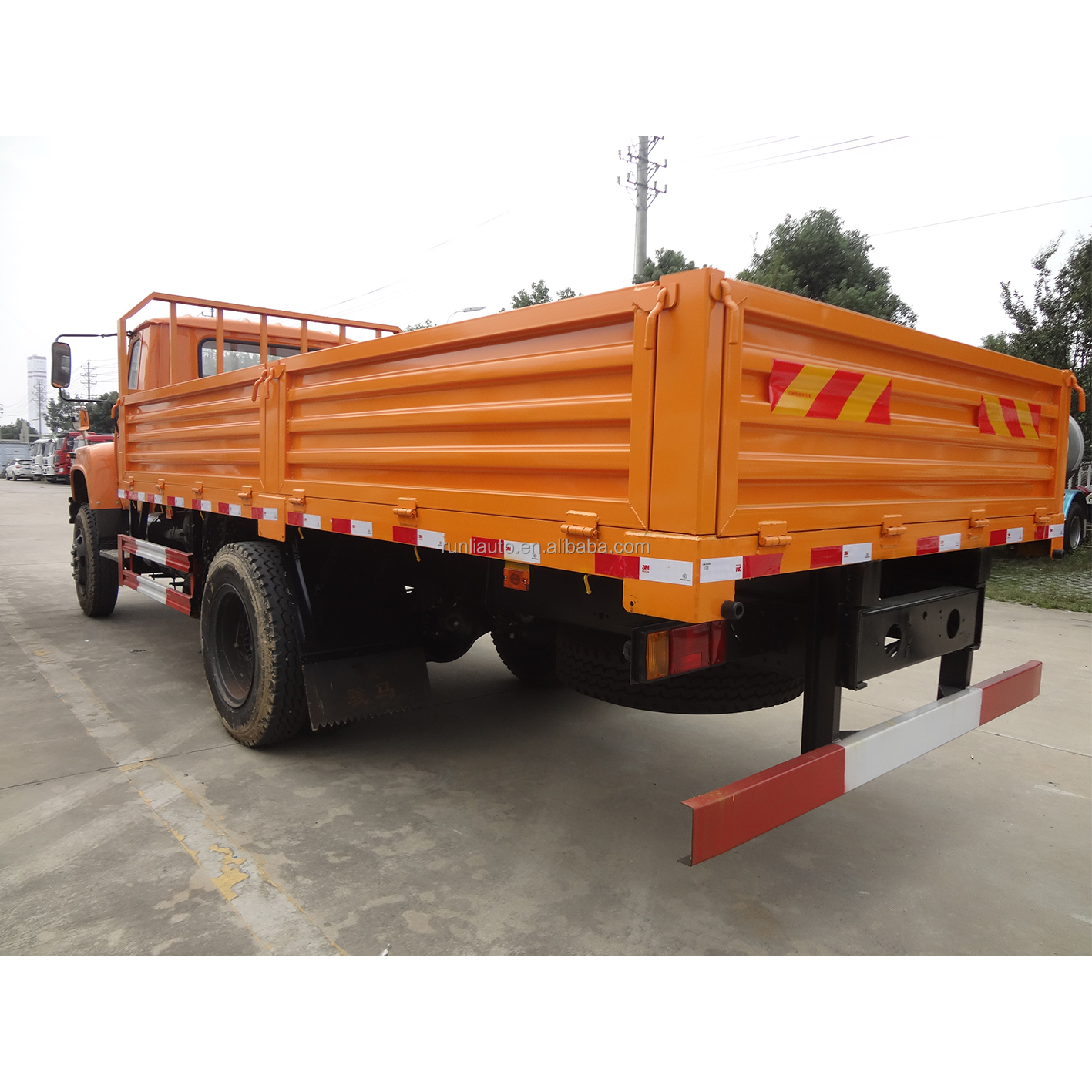

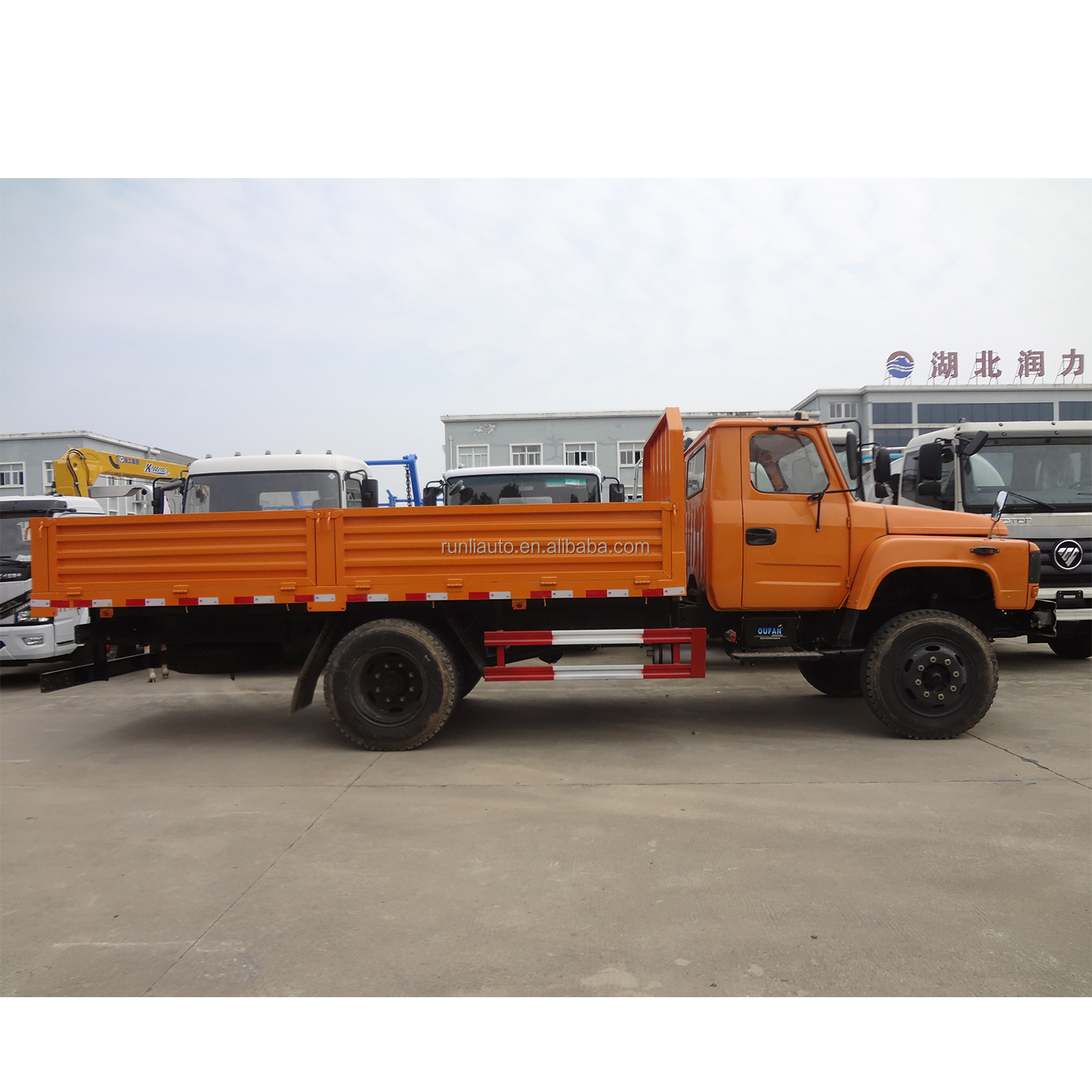

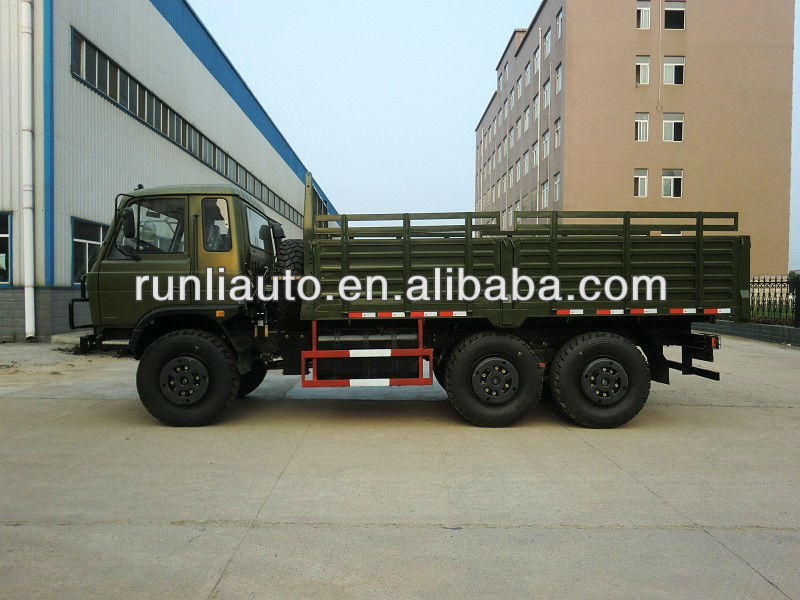

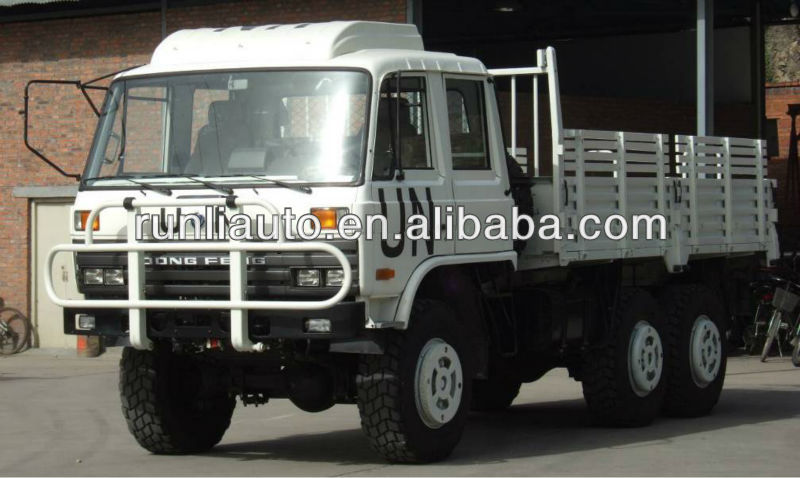

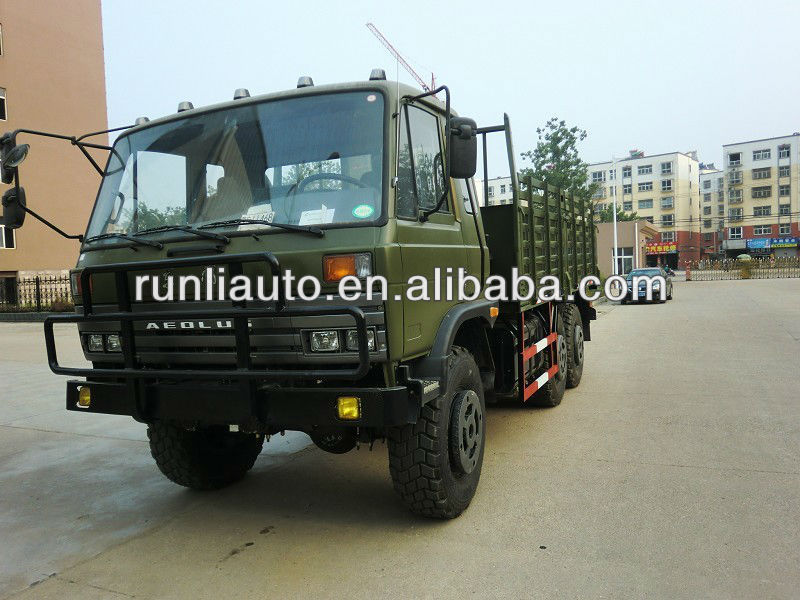

China Factory DONGFENG 4X2 Truck Cargo Box Accessories Images |
