Fuel Type : Diesel
Emission Standard : Euro 3
Condition : New
Transmission Type : Manual
Dimensions (L x W x H) (mm) : 9500x2550x3100mm
Place of Origin : Hubei, China
Brand Name : Runli
Product name : China shacman 4x2 10ton flatbed tow truck flat bed truck
type : left hand drive or right hand drive optional
Chassis brand : shacman
Color : Requirements
Loading capacity : 10ton
Horsepower : 130-400HP
Driving model : 4X2
Axles : 2
Material : High Tensile Steel
MOQ : 1 Set
Price : CN¥79,458.17/pieces 1-9 pieces
Main specification | ||||||
chassis brand | shacman | Driving type | 4x2 | |||
Driving wheel | LHD or RHD | Color | customizable | |||
Gross Weight | 18000kg | Overall dimension | 9500×2550×3100mm | |||
Approach/departure angle | 21/19 | Cab seats | 2,3 | |||
Axle NO. | 4 | Front/Rear hang | 1500/2350 | |||
Axle load(kg) | 2 | Wheelbase | 4500-4800mm | |||
Max Speed(km/h) | 88 | |||||
Chassis specification | ||||||
Chassis model | sx | Chassis brand | shacman | |||
Tyre Specification | 11.00R20 | Tyre NO. | 12 | |||
Steel spring number | 10/10/12 | Front track base(mm) | 1910 | |||
Fuel type | Diesel | Rear track base(mm) | 1820 | |||
Emission Standard | Euro 2/3/4/5/6 | Transmission | 8forward gear | |||
Engine brand | cummins | Horsepower | 240hp | |||
Performance | ||||||
Flat length | 6500mm | Flat width | 2550mm | |||
Load capacity(kg) | 8-10ton all kinds of excavator | Max lift weight(kg) | 1.5ton |
![]() |

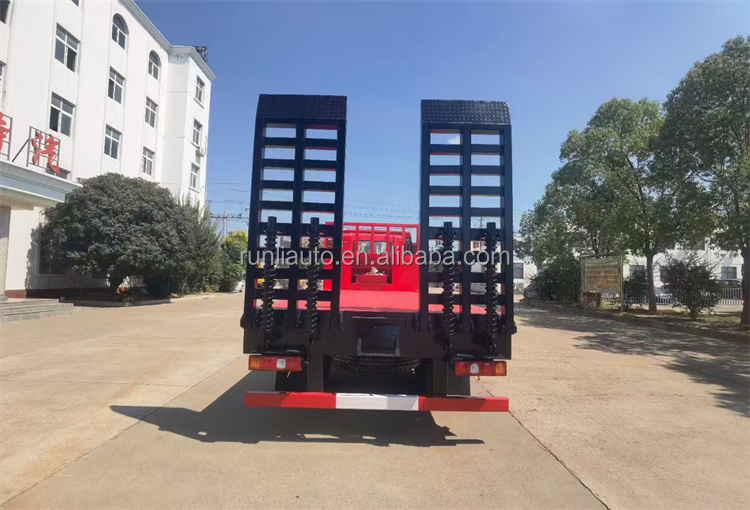

China Shacman 4x2 10ton Flatbed Tow Truck Flat Bed Truck Images |
