Fuel Type : Diesel, Diesel Oil
Emission Standard : Euro 2
Condition : New
Transmission Type : Manual
Dimensions (L x W x H) (mm) : 8500/7960x2500x3000mm
Place of Origin : Hubei, China
Brand Name : Runli
Product name : 6 wheels flat bed truck with ladder use for excavator forklift
Chassis brand : Shacman
Color : Requirements
Loading capacity : 8Ton-12ton
Horsepower : 240hp
Driving model : 4X2
Axles : 2
Material : High Tensile Steel
MOQ : 1 Set
Price : CN¥81,648.35/pieces 1-9 pieces
Main specification | ||||||
chassis brand | Shacman | Driving type | 4x2 | |||
Driving wheel | LHD or RHD | Color | customizable | |||
Gross Weight | 14000kg | Overall dimension | 8500/7960x2500x3000mm | |||
Approach/departure angle | 20/16 | Cab seats | 2,3 | |||
Axle NO. | 2 | Front/Rear hang | 1200/2090 | |||
Axle load(kg) | 4850/9150 | Wheelbase | 4200mm | |||
Max Speed(km/h) | 89 | |||||
Chassis specification | ||||||
Chassis model | SX | Chassis brand | Shacman | |||
Tyre Specification | 11.00R20 | Tyre NO. | 8 | |||
Steel spring number | 9/11+8 | Front track base(mm) | 1790 | |||
Fuel type | Diesel | Rear track base(mm) | 1650 | |||
Emission Standard | Euro 2 | Transmission | 10 forward gear | |||
Engine brand | Yuchai | Horsepower | 240hp | |||
Performance | ||||||
Flat length | 5960/5410mm | Flat width | 2500mm | |||
Load capacity(kg) | 8-12ton all kinds of excavator | Max lift weight(kg) | 1.5ton |
![]() |

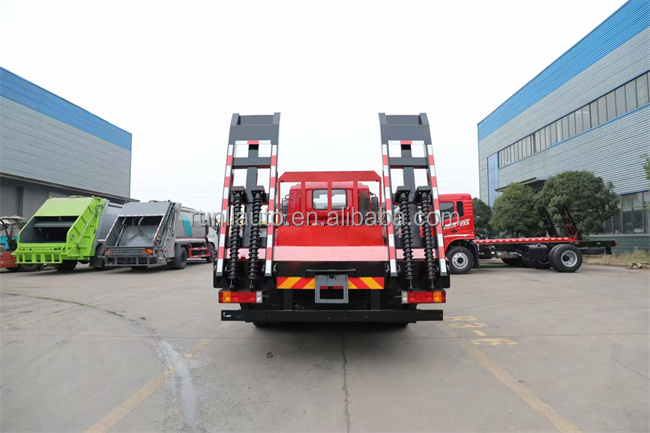

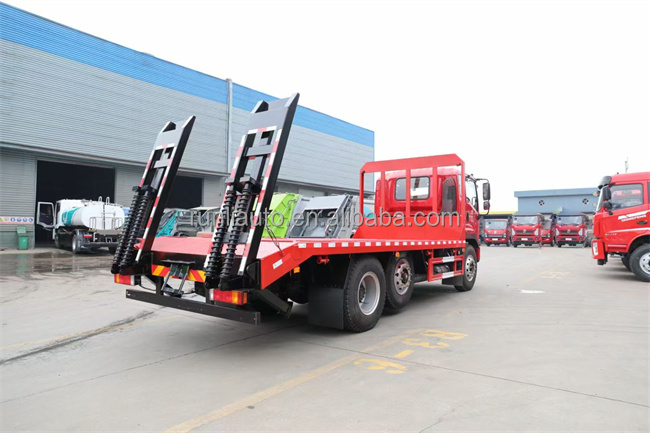

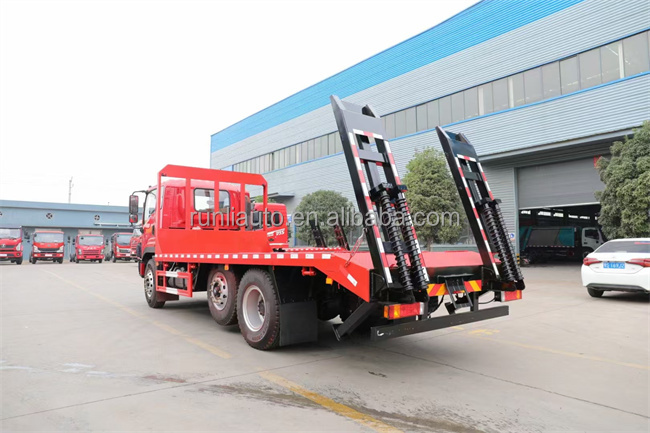

6 Wheels Chinese Winch Support Wrecker Flat Bed Truck With Ladder Use for Excavator Forklift Loading 8-12 Ton Rescue Truck Images |
